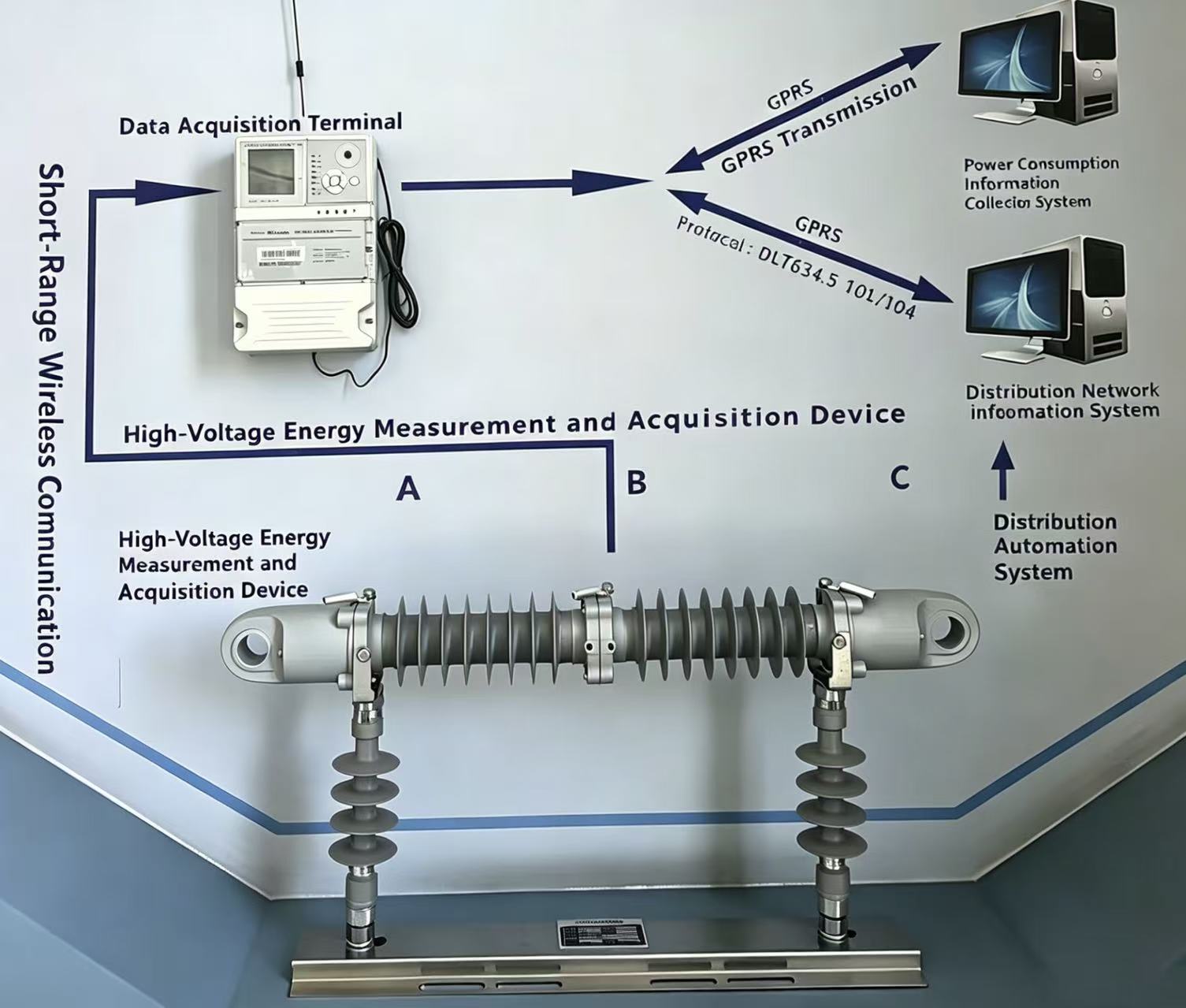

High-Voltage Energy Measurement and Acquisition Device

The high-voltage energy meter uses electronic sensors to collect voltage and current signals. Its volume and weight are only one-tenth of traditional products, making it more compact and easier to install.

The metering chip is suspended on the high-voltage side, and metering signals are connected to the chip nearby, effectively reducing the impact of secondary interference on measurement accuracy. The overall energy accuracy is calibrated as a complete unit, and the overall metering accuracy is significantly better than the traditional comprehensive error.

Different models have been developed for different application scenarios, greatly improving versatility and on-site construction success rate. The product fully integrates primary and secondary functions, with more stable performance and more complete and reasonable functions.

This device is equipped with electronic sensing units for voltage and current signal acquisition. The metering chip is integrated on the high-voltage side with local signal access, which effectively eliminates secondary interference. Combined with integrated calibration of the complete unit, high-precision metering is achieved.

Adopting an in-depth integrated primary and secondary architecture, the product features stable operation and comprehensive functions, enabling remote data collection.

It greatly reduces the consumption of copper and iron materials, lowers copper loss, iron loss and self-power consumption for energy conservation and environmental protection.

With an overall weight of less than 10 kg and easy installation, it is a domestically leading lightweight electrical energy measurement and acquisition device.
