HTD-0030EF20

Type: EF20-012801

Technical requirements and electrical safety performance: Comply with GB/T 15290-2012 General Technical Specifications for Power Transformers and Filter Chokes for Electronic Equipment.

description

SpecificationHTD-0030EF20VersionVer.1Date2026/5/13

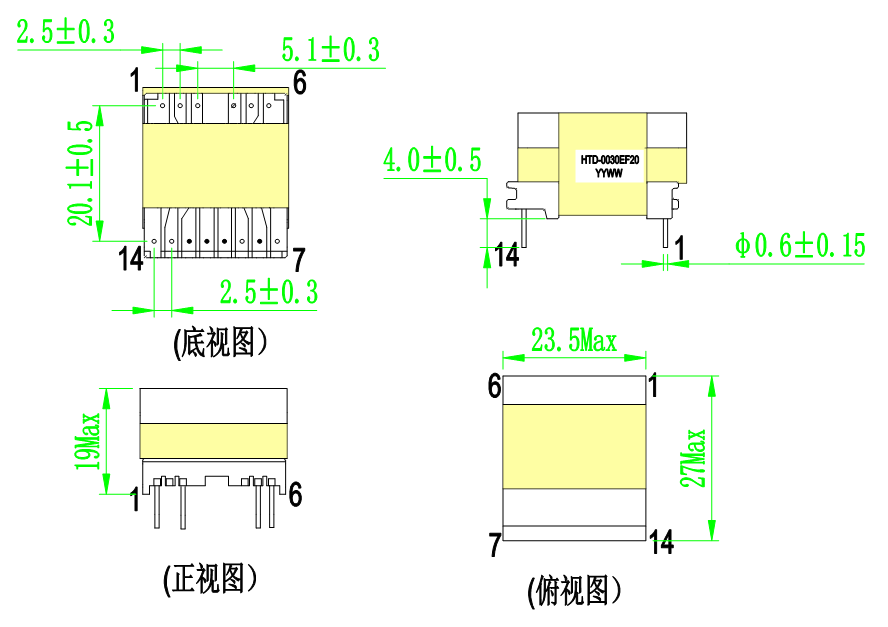

Dimensions( in mm tolerance not specified is ±0.5).
Main technical indicator
Serial numberParameter nameParameter requirementsTest conditions / methods
1Inductance1-32.0mH±5%10KHz, 1V
2TURNN0:N1:N2:N3:N4:N5:N622:96:25:30:44;30:2220KHz, 1V
