HTD-EI28-001
Type: T220V1W0Z1-01
Technical requirements and electrical safety performance: Compliant with GB/T 15290-2012 General Technical Conditions for Power Transformers and Filter Inductors for Electronic Equipment and GB 8898-2011 “Safety Requirements for Audio, Video and Similar Electronic Equipment.
description
| Specification | HTD-EI28-001 | Version | Ver.1 | Date | 2023/11/2 | ||||||||

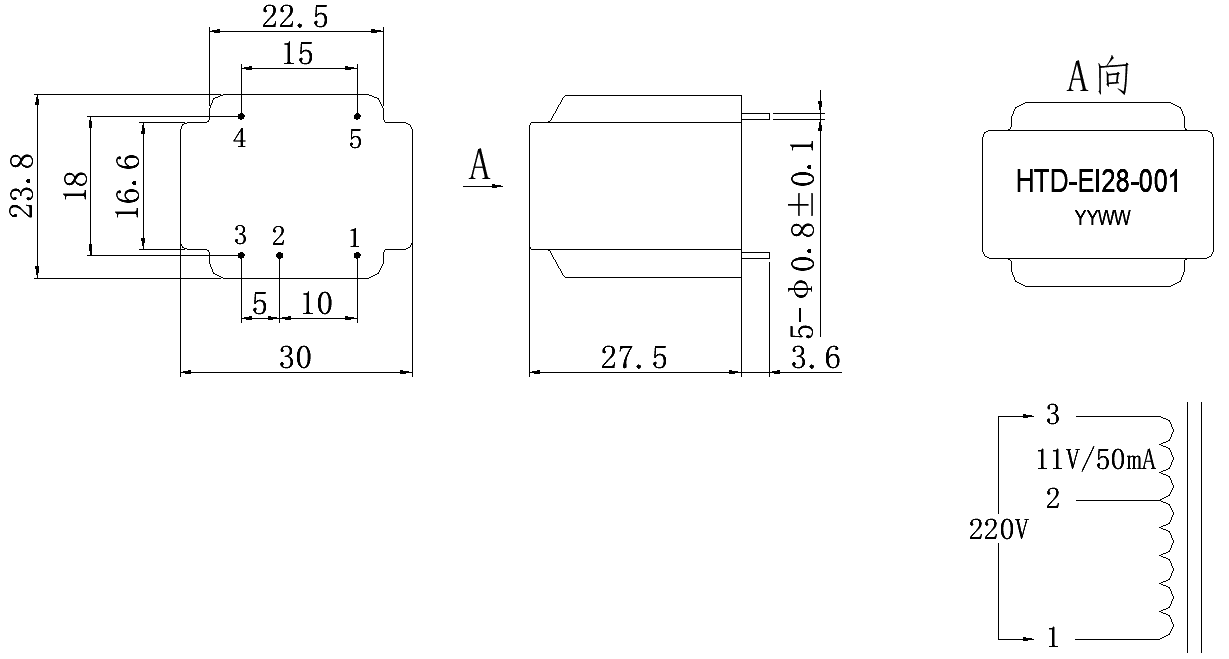

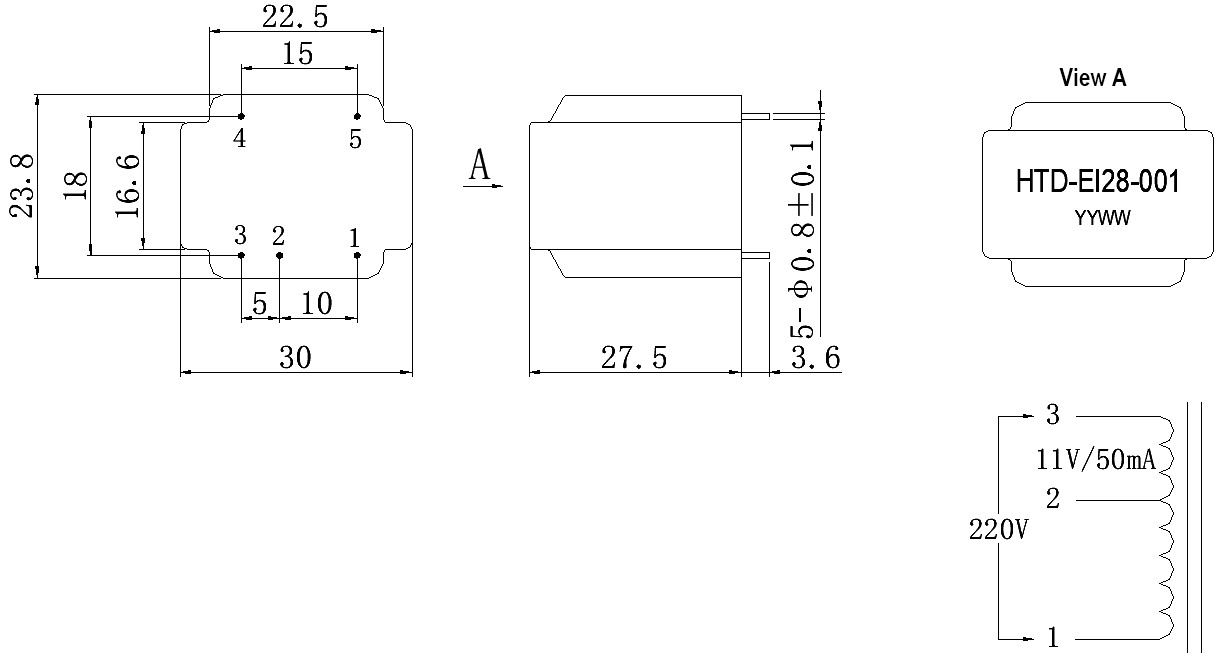

| Dimensions( in mm tolerance not specified is ±0.5),facing the pins. | |||||||||||||
 | |||||||||||||
| Main technical indicators. (Temperature: 23℃ ± 2℃, Humidity: 60% – 90% RH, Atmospheric pressure: 86KPa – 106KPa) | |||||||||||||
| Parameter name | Measuring terminal | Test conditions | Test value | Remark | |||||||||
| no-load current | 1-3 | 50Hz 220V | ≤2mA | effective value | |||||||||
| no-load voltage | 2-3 | 50Hz 220V | 13.0V±0.5V | ||||||||||
| load voltage | 2-3 | load current 50mA | 11.0V±0.5V | ||||||||||
| overvoltage | 1-3 | 420V for 4h | no damage | ||||||||||
| appearance | No surface damage, laser etching, clear brand name, smooth terminals | blue cover | |||||||||||
