HTD-EI28-003
Type: T230V0W8G2-01
Technical requirements and electrical safety performance: Compliant with GB/T 15290-2012 General Technical Conditions for Power Transformers and Filter Inductors for Electronic Equipment and GB 8898-2011 “Safety Requirements for Audio, Video and Similar Electronic Equipment.
description
| Specification | HTD-EI28-003 | Version | Ver.2 | Date | 2025/5/20 | ||||||||

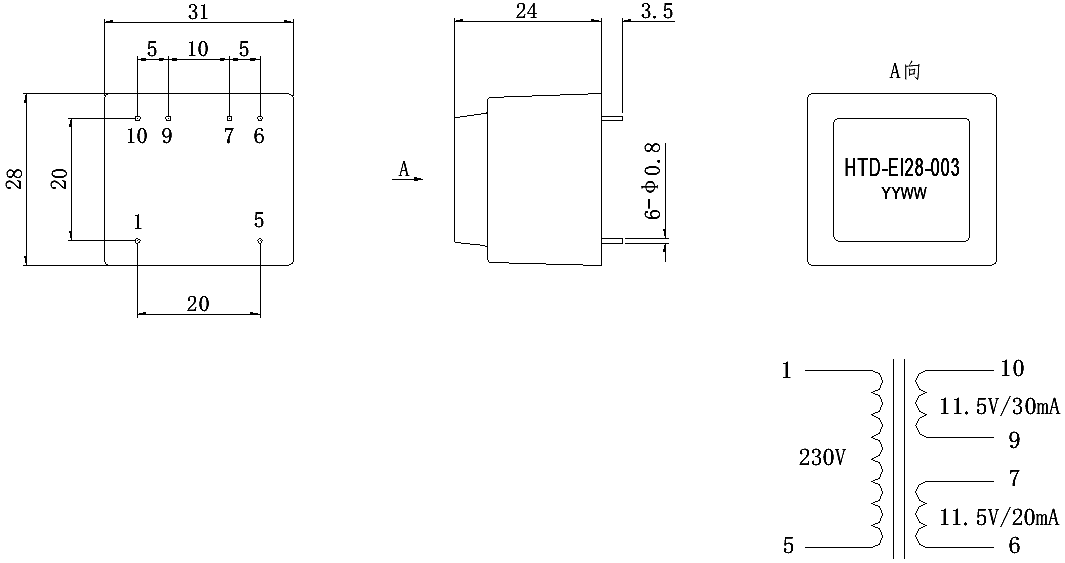

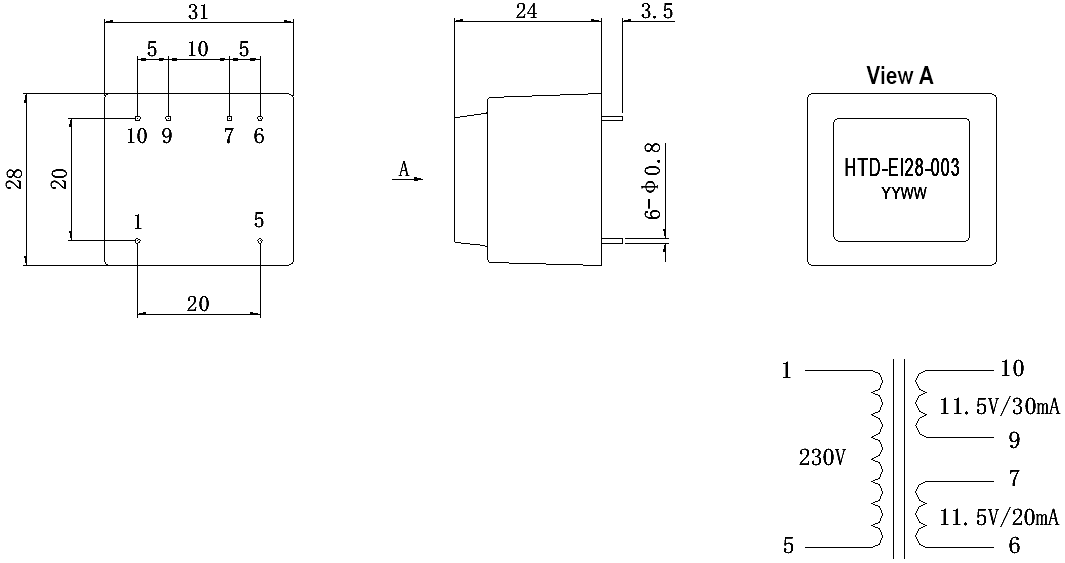

| Dimensions (in mm） Facing the pins, the spacing between the pins and the pitch between rows have a tolerance of ±0.5mm.) | |||||||||||||
 | |||||||||||||
| Main technical indicators. (Temperature: 23℃ ± 2℃, Humidity: 60% – 90% RH, Atmospheric pressure: 86KPa – 106KPa) | |||||||||||||
| Parameter name | Measuring terminal | Test conditions | Test value | Remark | |||||||||
| AC voltage withstand test | 6-7 and 1-5 | 50Hz 4200V 1min | No breakdown, no sparking | leak current ≤1mA | |||||||||
| 6-7 and 9-10 | |||||||||||||
| 1-5 and 9-10 | 50Hz 2500V 1min | ||||||||||||
| no-load current | 1-5 | 50Hz 230V | ≤2.0mA | effective value | |||||||||
| no-load voltage | 6-7 | 50Hz 230V | 15.5V±0.5V | ||||||||||
| 9-10 | 50Hz 230V | 15.5V±0.5V | |||||||||||
| load voltage | 6-7 | load current 20mA | 11.5V±0.5V | Single-load group | |||||||||
| 9-10 | load current 30mA | 11.5V±0.5V | |||||||||||
| overvoltage | 1-5 | 450V 72h | no damage | ||||||||||
| appearance | No surface damage, laser etching, clear brand name, smooth terminals | Blue matte 299U | |||||||||||
