HTD-EI35-002
Type: T220V3W8G2-02
Technical requirements and electrical safety performance: Compliant with GB/T 15290-2012 General Technical Conditions for Power Transformers and Filter Inductors for Electronic Equipment and GB 8898-2011 “Safety Requirements for Audio, Video and Similar Electronic Equipment.
description
| Specification | HTD-EI35-002 | Version | Ver.1 | Date | 2025/1/2 | ||||||||

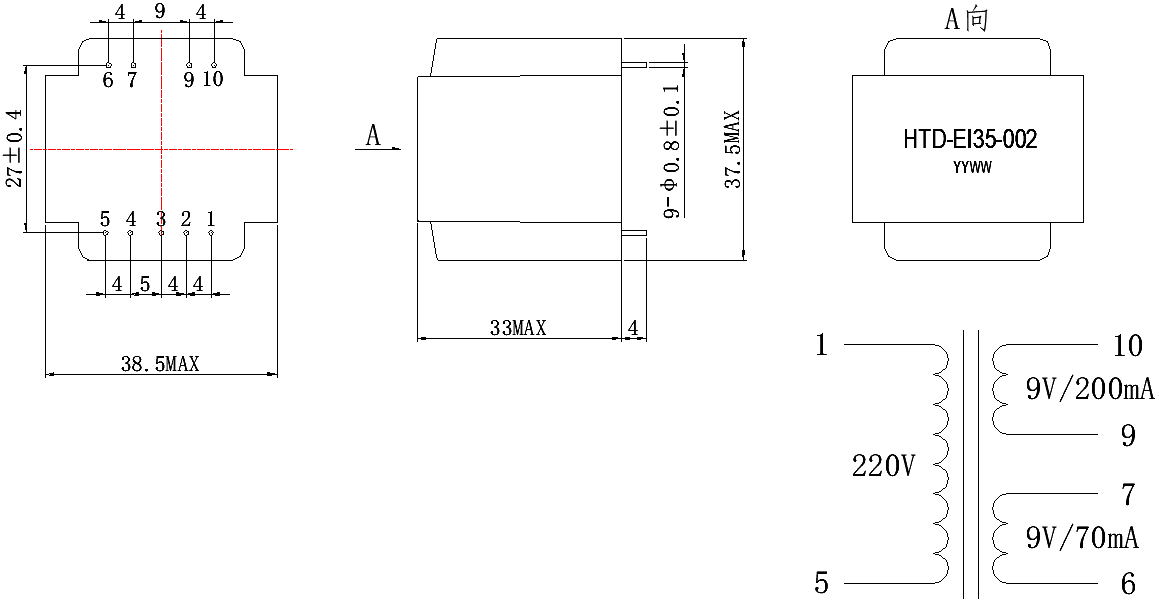

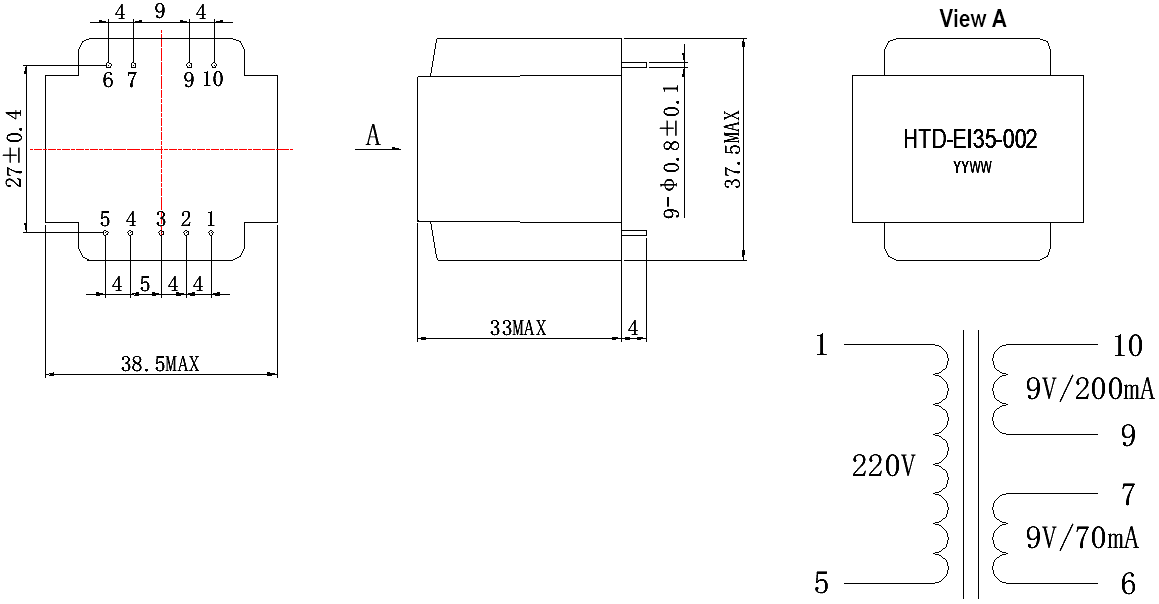

| Dimensions (in mm) Facing the pins,Uncertained tolerances are set at ±0.5. | |||||||||||||
 | |||||||||||||
| Main technical indicators. (Temperature: 23℃ ± 2℃, Humidity: 60% – 90% RH, Atmospheric pressure: 86KPa – 106KPa) | |||||||||||||
| Parameter name | Measuring terminal | Test conditions | Test value | Remark | |||||||||
| insulation resistance | 1-5, 9-10 | 500V megohmmeter | ≥1000MG | ||||||||||
| AC voltage withstand test | 6-7, 1-5 | 50Hz 4500V 1min | No breakdown, no sparking | leak current ≤1mA | |||||||||
| 6-7, 9-10 | |||||||||||||
| no-load current | 1-5 | 50Hz 220V | ≤3.0mA | effective value | |||||||||
| no-load voltage | 6-7 | 50Hz 220V | 12.5V±0.5V | ||||||||||
| 9-10 | 50Hz 220V | 13.0V±0.5V | |||||||||||
| load voltage | 6-7 | load current 70mA | ≥9.0V | full loading | |||||||||
| 9-10 | load current 200mA | ≥9.0V | |||||||||||
| overvoltage | 1-5 input 420V, load for 4 hours, temperature rise is less than 40℃, no abnormal phenomena, parameters remain unchanged after returning to normal temperature. | ||||||||||||
| appearance | No surface damage, laser etching, clear brand name, smooth terminals | ||||||||||||
