HTD-EI35-005
Type: LF-35-05
Technical requirements and electrical safety performance: Compliant with GB/T 15290-2012 General Technical Conditions for Power Transformers and Filter Inductors for Electronic Equipment and GB 8898-2011 Safety Requirements for Audio, Video and Similar Electronic Equipment.
description
| Specification | HTD-EI35-005 | Date | 2025/3/3 | Version | Ver.1 | ||||||||

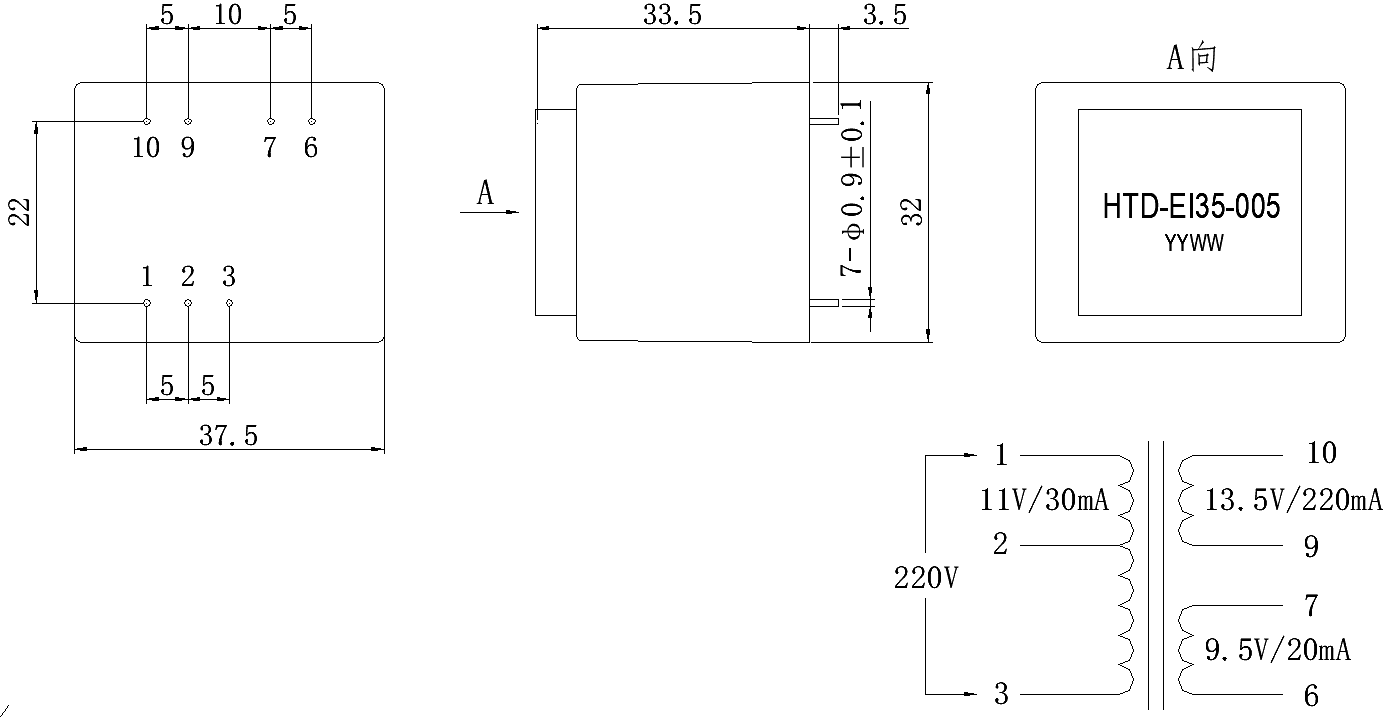

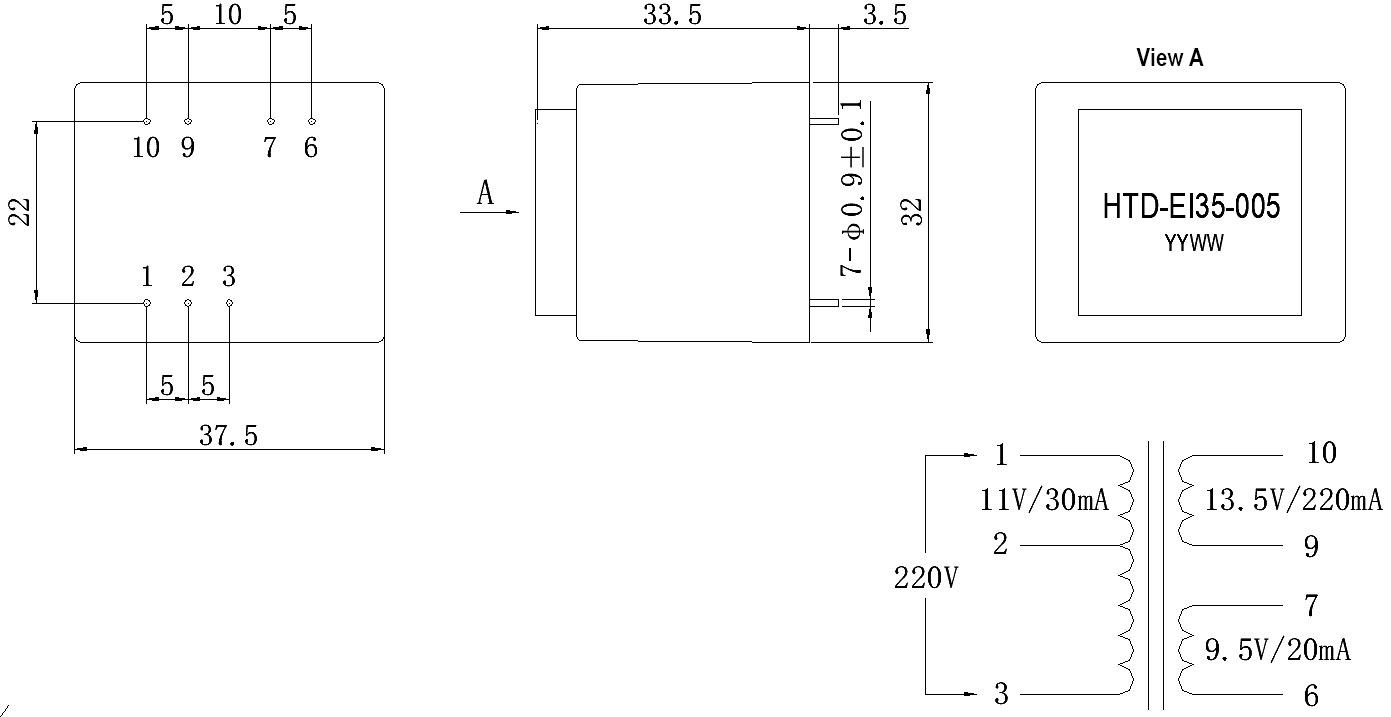

| Dimensions (in mm,) facing the pins,Uncertained tolerances are set at ±0.5. | |||||||||||||
 | |||||||||||||
| Main technical indicators. (Temperature: 23℃ ± 2℃, Humidity: 60% – 90% RH, Atmospheric pressure: 86KPa – 106KPa) | |||||||||||||
| Parameter name | Measuring terminal | Test conditions | Test value | Remark | |||||||||
| AC voltage withstand test | 1-2-3 and 6-7 | 50Hz 4500V 1minture | No breakdown, no sparking | leak current ≤1mA | |||||||||
| 1-2-3 and 9-10 | |||||||||||||
| 6-7 and 9-10 | |||||||||||||
| no-load currrent | 1-3 | 50Hz 220V | ≤8.5mA | effective value | |||||||||
| no-load consumption | 1-3 | 50Hz 220V | ≤0.45W | effective value | |||||||||
| no-load voltage | 1-2 | 50Hz 220V | 13.0V±0.5V | ||||||||||
| 6-7 | 50Hz 220V | 11.0V±0.5V | |||||||||||
| 9-10 | 50Hz 220V | 17.0V±0.5V | |||||||||||
| load voltage | 1-2 | load current 30mA | 11.0V±0.5V | full loading | |||||||||
| 6-7 | load current 30mA | 9.5V±0.5V | |||||||||||
| 9-10 | load current 220mA | 13.5V±0.5V | |||||||||||
| overvoltage | 1-3 | 330V 4h | no damage | ||||||||||

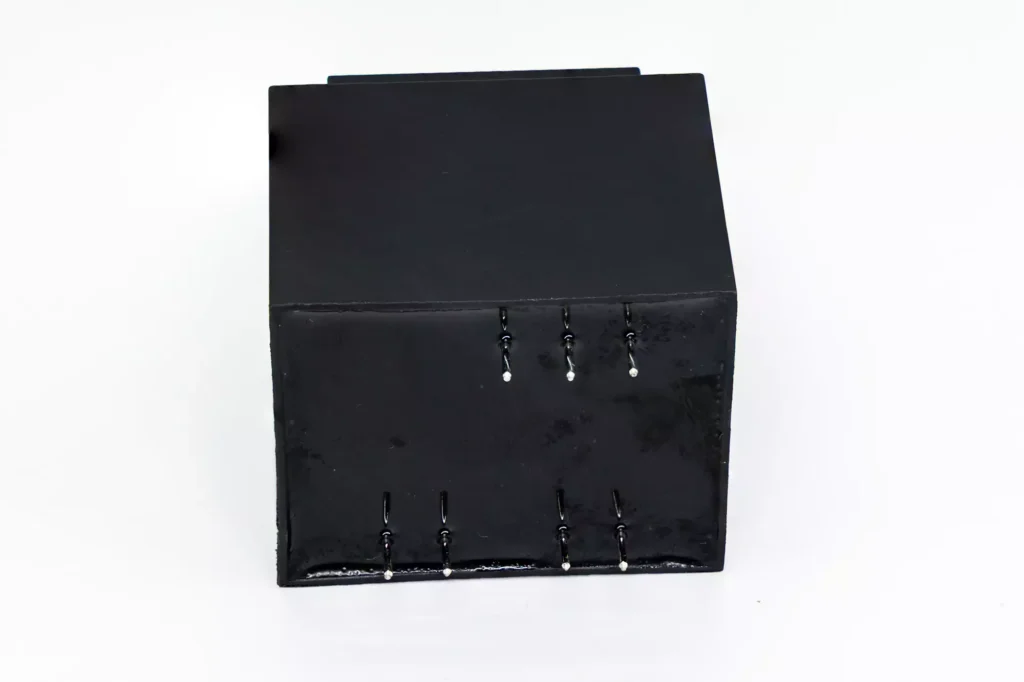

| appearance | No surface damage, laser etching, clear brand name, smooth terminals | black cover | |||||||||||
