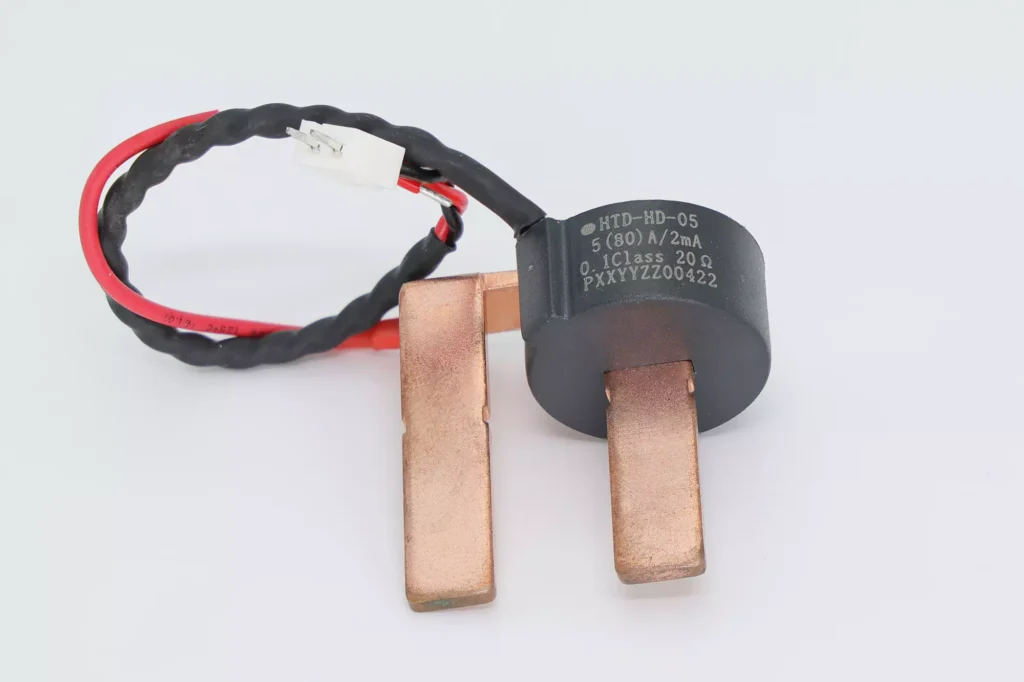

HTD-HD-05

Type: HT56500422

Technical requirements and electrical safety performance: Compliant with the technical specifications for components used in electric energy metering equipment – Part 15: Current transformers Q/GDW 11179.15—2023, and JB/T10665-2016 Miniature current transformers for electric energy meters.

description

SpecificationHTD-HD-05VersionVer.1Date2026/5/13

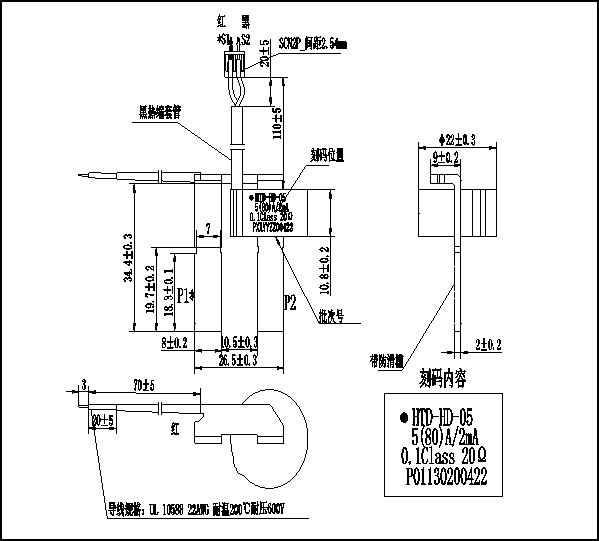

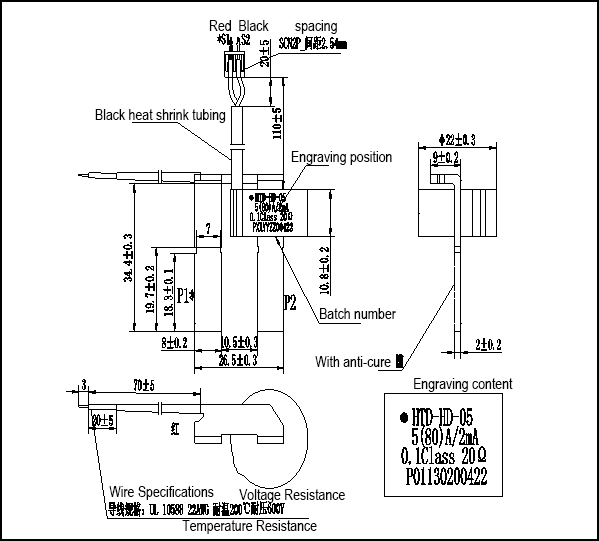

Dimensions (in mm Uncertained tolerances are set at ±0.5.)
Note:The input terminal P1 and the secondary terminal S1 are of the same name.
Main technical indicators
sealing materialepoxy resin
operating temperature-40℃~+70℃
withstand voltage strength4kV/50Hz/1min
power frequency50Hz
rated primary current5A
rated secondary current2mA
maximum current80A
rated secondary load20Ω
accuracy0.1Class
DC even harmonic error test/
