JDZ-10 Voltage Transformer

This type of voltage transformer is a single-phase epoxy resin cast insulation indoor product, mainly suitable for use in energy metering, voltage measurement and monitoring, and relay protection in neutral point non effectively grounded power systems with a rated frequency of 50Hz and a rated voltage of 10kV and below.

description

Type	Rated transformation ratio (kV)	Accuracy class combination	rated output (VA)	Limited output (VA）	Rated insulation level (kV)	Weight (kg)	Wiring diagram
JDZJ18-3	3/√3/0.1/√3/0.1	0.2/6P (3P) 0.5/6P (3P) 1/6P (3P) 3/6P (3P)	15/40 20/40 30/40 40/40	300	3.6/ 23/ 40	18	Figures 1 and 2
	3/√3/0.1/√3/0.1/3
	3/√3/0.1/√3/0.1/√3/0.1	0.2/ 0.5/ 3P (6P)	10/ 15/ 40	2×150
	3/√3/0.1/√3/0.1/√3/0.1/3
JDZJ18-6	6/√3/0.1/√3/0.1	0.2/6P(3P) 0.5/6P(3P) 1/6P(3P) 3/6P(3P)	15/40 20/40 30/40 40/40	300	7.2/ 30/ 60	19
	6/√3/0.1/√3/0.1/3
	6/√3/0.1/√3/0.1/√3/0.1	0.2/0.5/3P(6P)	10/15/40	2×150
	6/√3/0.1/√3/0.1/√3/0.1/3
JDZJ18-10	10/√3/0.1/√3/0.1	0.2/6P (3P) 0.5/6P (3P) 1/6P (3P) 3/6P (3P)	15/40 20/40 30/40 40/40	300	12/ 42/ 75	20
	10/√3/0.1/√3/0.1/3
	10/√3/0.1/√3/0.1/√3/0.1	0.2/0.5/3P(6P)	10/ 15/ 40	2×150
	10/√3/0.1/√3/0.1/√3/0.1/3

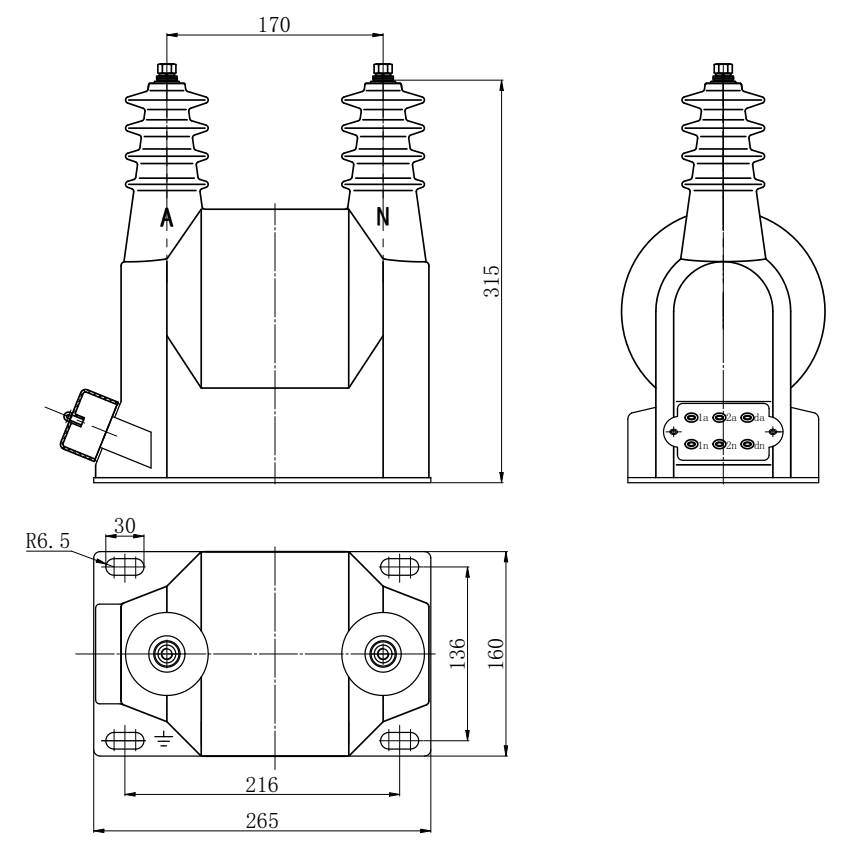

Outline and installation dimension drawing

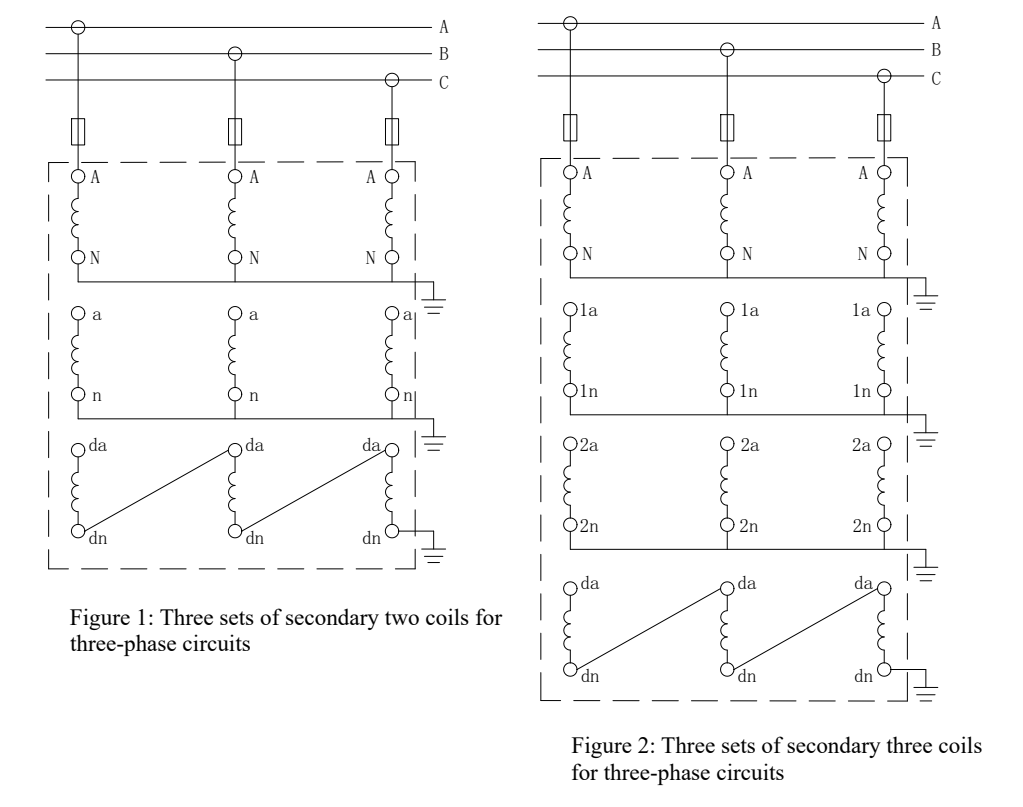

Wiring diagram

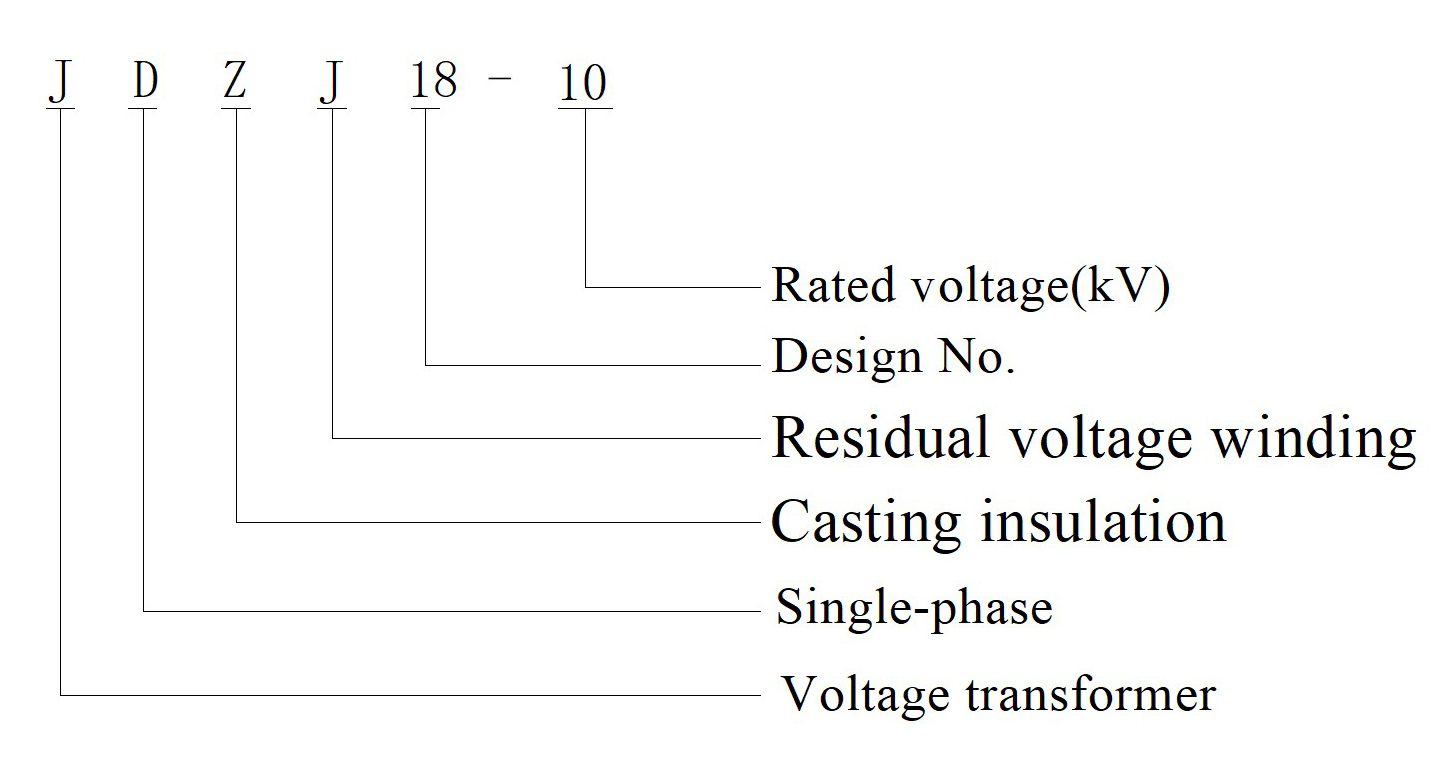

Model Meaning
