LMZ2-0.66 Current Transformers

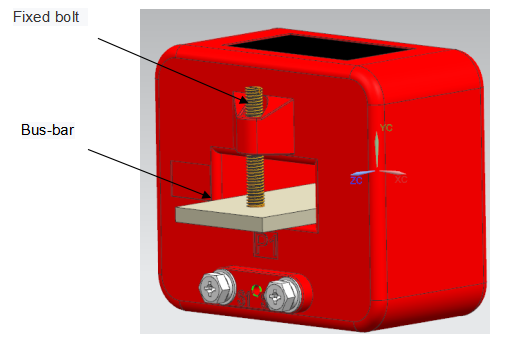

LMZ2-0.66 current transformers are suitable for current and electric energy measurement or relay protection in AC lines with rated frequency of 50Hz and rated voltage of 0.66kV and below. The product is a casting current transformer, and its installation method is fixed by the bottom plate.
Meet the standards: IEC 61869-1, IEC 61869-2.

description

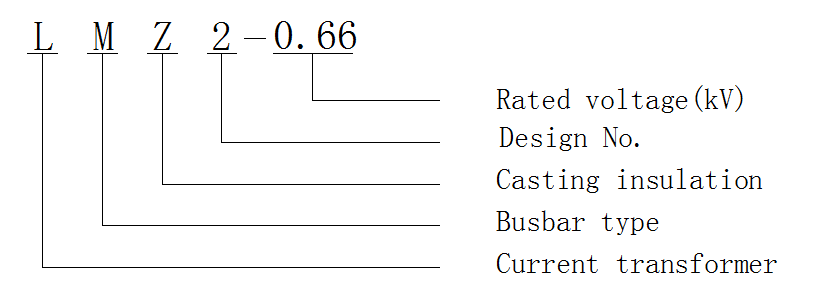

Type Descripition

Technical Data

Rated transformation ratio (A)	Straight-through turn No.	Accuracy class and Rated output (VA)				Weight	Notes
		Accuracy class and Rated output (VA)				（kg）
		0.2S	0.2	0.5S	0.5
100/5	1	5	5	5	5	1.7	30×20
150/5	1					1.6
200/5	1					1.02
250/5	1					1.06
300/5	1	10	10	10	10	1.12
350/5	1					1.14
400/5	1					1.15
500/5	1					1.18
200/5	1	5	5	5	5	1.14	44×20
300/5	1	10	10	10	10	1.16
400/5	1					1.17
500/5	1					1.19
600/5	1					1.21
250/5	1	5	5	5	5	1.01	54×25
300/5	1	5	5	5	5	1.03
400/5	1	10	10	10	10	1.08
500/5	1					1.09
600/5	1					1.1
750/5	1					1.14
800/5	1					1.15
1000/5	1					1.2
400/5	1	10	10	10	10	1.17	64×25
500/5	1					1.21
600/5	1					1.34
750/5	1					1.53
800/5	1					1.6
1000/5	1					1.82
1200/5	1					1.85
500/5	1	10	10	10	10	1.17
500/5	1					1.17
600/5	1					1.18
750/5	1					1.21
800/5	1					1.26	84×35
1000/5	1					1.37
1200/5	1					1.45
1500/5	1					1.65
May-00	1					1.89
750/5	1	10	10	10	10	1.63	104×35
800/5	1					1.64
1000/5	1					1.65
1200/5	1					1.85
1500/5	1					1.98
May-00	1					2.05
May-00	1					2.2
1500/5	1	5	5	5	5	2.1	130×62
May-00	1	10	10	10	10	2.2
May-00	1					2.23
May-00	1					2.6
May-00	1					2.71
May-00	1					2.82

Note: For the above-mentioned contents stated, if users have special requirements can be negotiated with our company.

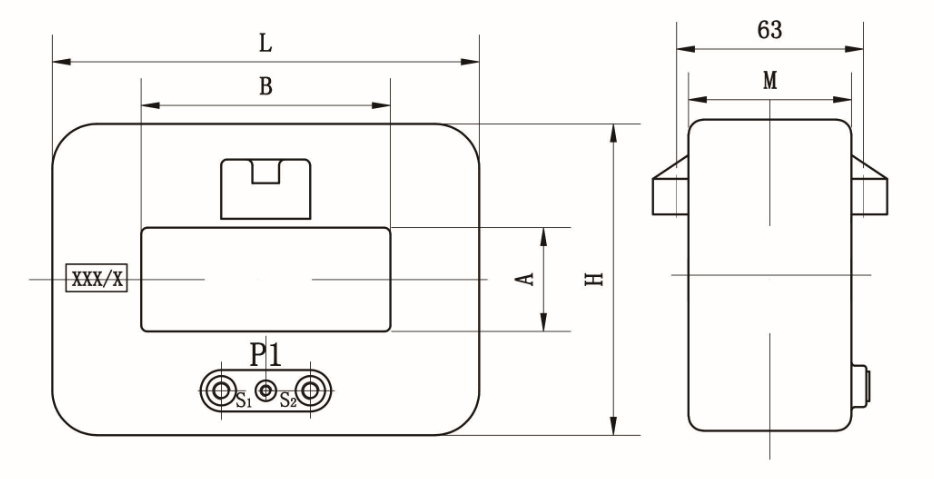

General Dimension Drawing

Type	L	B	A	M	H
LMZ2-0.66 35*20	95	35	20	55	95
LMZ2-0.66 44*20	104	44	20	55	90
LMZ2-0.66 54*25	114	54	25	55	95
LMZ2-0.66 64*25	124	64	25	55	95
LMZ2-0.66 84*35	144	84	35	55	105
LMZ2-0.66 104*35	164	104	35	55	105
LMZ2-0.66 130*62	190	130	62	55	132

Installation Diagram

BH-0.66Ⅱ Current Transformer

BH-0.66Ⅰ Current Transformer
